Introduction

By increasing heavy metals in the environment, heavy metals pollution has become a critical issue and attracted considerable attentions because of both acute and chronic toxicity [1]. Heavy metals have released to the environment by industrial manufacture such as pesticides, fertilizers, dyes, drugs, battery, tannery, fossil fuel, ceramic and glass industries printing [2,3]. Lead (Pb²⁺), as a heavy metal, exist as pollutant in soil and water. Lead should be removed from water because of its high toxicity, non-biodegradable nature and bioaccumulation in the food chain [4,5]. Pb²⁺causes serious nervous system problems, gastrointestinal diseases, blood and brain disorders, and cancer [6,7]. To remove Pb²⁺ from wastewaters, several methods have been handled such as coagulation [8], floatation [9], precipitation [10], solvent extraction [11], adsorption [12] and ion exchange [13]. Adsorption, among the mentioned method, because of simplicity, and low cost is the most promising one [14,15]. Many different adsorbent have been applied to remove lead from wastewaters including zeolites [12], activated carbons [16], fly ash [17], and metal oxides [18].

Co₃O₄, a p-type semiconductor, has many attractive properties including high catalytic activity [19], supercapacity [20], heavy metal removal [21], and gas sensing [22]. On the other hand, Zinc oxide (ZnO) is an n-type semiconductor with wide direct band gap (3.4 eV) [23] and various applications such as hydrogen storage [24], photocatalyst [25], piezoelectric sensor [26] and heavy metal removal [27]. Consequently, combination of these two significant metal oxides will expand their potential

 application area.

Different synthetic method  have been reported to produce nano Co₃O₄- ZnO such as electro-spinning process [28], homogeneous precipitation method [29], plasma enhanced–chemical vapor deposition [30], and photochemical coating method [31]. Co₃O₄- ZnO were used as photocatalyst for degradation of rhodamine B dye [28], piezoelectric transducer [32], and gas sensor [30].  Herein, we have synthesized nano Co₃O₄-ZnO by simple and green gel combustion method. The fuel was used for combustion in this work is Sugar. This method has never been reported for the synthesis of such material previously. The nano Co₃O₄-ZnO were characterized and the adsorption of Pb²⁺ on its surface was investigated. To prove the adsorption of lead on the surface of as synthesized samples we used EDAX and SEM analysis. Moreover, the concentrations of remained Pb²⁺ ions were also measured by atomic absorption spectroscopy (AAS).

Materials

Zinc nitrate hexahydrate, cobalt nitrate hexahydrate were used as precursors. Commercial sugar purchased from the local market was used as a fuel for combustion. lead nitrate solution was used for adsorption, which was prepared by dissolving lead nitrate (Merck; >99%, LR grade).

Synthesis of Co₃O₄

Co₃O₄ was synthesized by the gel combustion method, which is used to synthesize ZnO nano structures, before [2]. Cobalt nitrate hexahydrate was applied as the cobalt precursor. 0.01 mol (2.91 g) of cobalt nitrate hexahydrate and 5 g of sugar were dissolved in 30 mL distilled water. The reaction mixture was placed on a hot plate at 250 ̊C. During the heating process, water vapor and nitric gases were released and the gel is formed. The gel was then calcinated at 600°C for 2 hours and characterized for further use.

Synthesis of Co₃O₄- ZnO

To prepare ZnO-Co₃O₄ samples, different aqueous metal nitrate solutions were prepared by dissolving each cobalt nitrate and zinc nitrate in water at different ratio (5:5, 8:2, 7:3, and 9:1). After mixing the desired solution, 5 g of sugar was addes to the mixture. The reaction mixture was then placed on a hot plate at 250 ̊C. During the heating process, water vapor and nitric gases were released and the gel is formed. The prepared gel was then calcinated at 600°C for 2 hours and characterized for

further use.

Adsorption Studies of Pb on the Surface

0.125 gram of synthesized Co₃O₄ and each ZnO-Co₃O₄ sampleswere separately added to the 15 mL of 0.5 M lead nitrate solution taken in a 50 mL conical flask and the solution was shaken by mechanical shaker for three hours. Co₃O₄ and each ZnO-Co₃O₄ adsorbents were then filtered and filtrates was dried at 200 ̊C. The dried powders were characterized SEM and EDAX analysis. The concentrations of remained Pb²⁺ ions in supernatant were also measured by atomic absorption spectroscopy (AAS) and the sample absorbance was measured. The adsorption efficiency (R%) were measured using the following equation:

Where C₀ is the initial metal ions concentration (mg l⁻¹) and C_f the final Pb²⁺ concentration (mg l⁻¹).

Results and Discussions

X-ray diffraction (XRD) analysis

XRD of Co₃O₄ is represented in Figure 1a. The sample in Figure 1a having crystalline morphology with broad peaks match well with the Co₃O₄ JCPDS card 43-1003. The apparent peaks at 2θ values of 19.01, 31.22, 37.12, 38.95, 44.18, 55.87, 59.50, 65.48 and 77.23 correspond to the crystal planes of (111), (220), (311), (222), (400), (422), (511), (440) and (533) respectively, which confirms the formation of pure Co₃O₄ [28]. The crystal size of the sample was calculated by Scherrer equation. The average particle size of the cobalt oxide was found to be 43.685 nm. XRD patterns of as synthesized Co₃O₄-ZnO nanoparticles are shown in figure 1b-e. It is observable that ZnO peaks is presented on the patterns. The average particle size of Co₃O₄-ZnO 9:1, 8:2, 7:3, and 5:5 are 35.023, 40.915, 46.600, and 52.950 respectively.

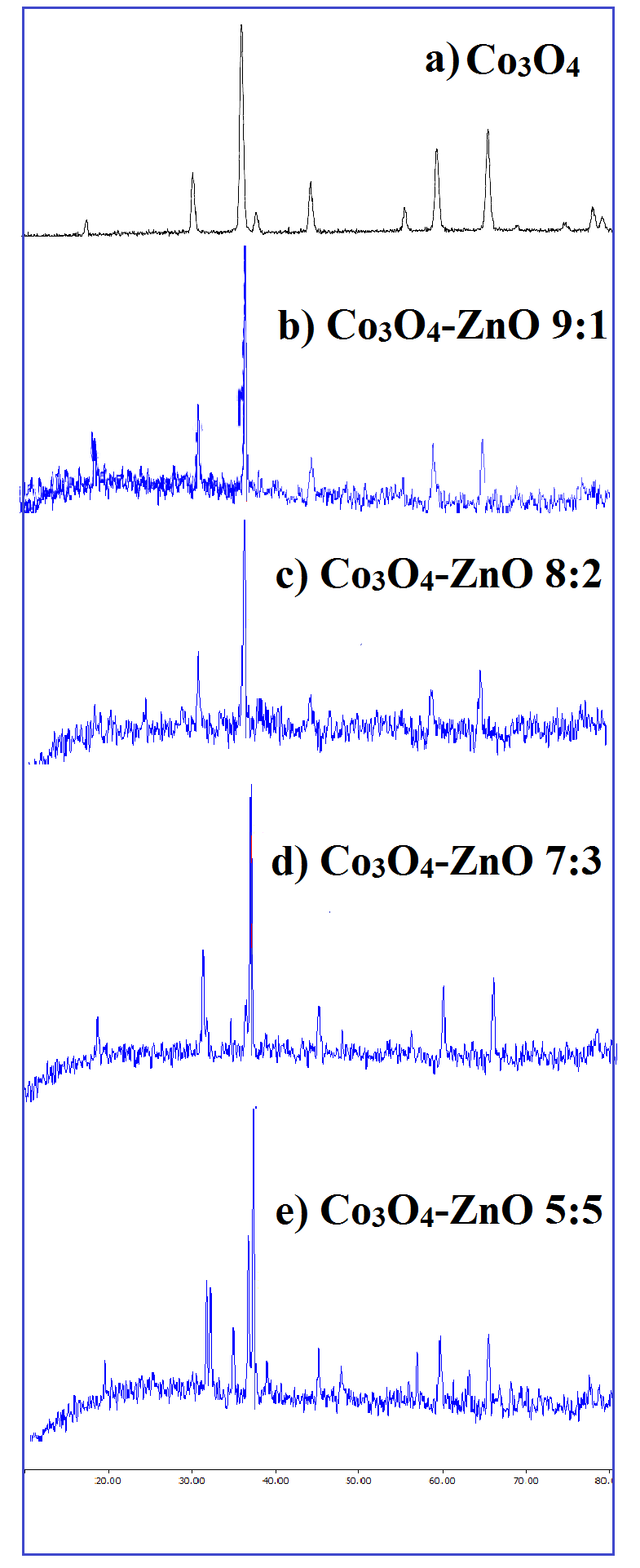

Fig. 1. XRD patterns of a) pure Co₃O₄, b) Co₃O₄-ZnO 9:1, c) Co₃O₄-ZnO 8:2, d) Co₃O₄-ZnO 7:3, and e) Co₃O₄-ZnO 5:5.

Energy Dispersive X-Ray analysis (EDAX) Analysis

The EDX analyses results depict the presence of only cobalt and oxygen elements in the as-synthesized Co₃O₄ sample (Fig. 2(a)). The EDAX analysis data of the Co₃O₄-ZnO indicate the presence of Zn atoms besides Co and O atoms, which prove the samples, are properly synthesized (Fig. 2(b-e)). Moreover, it is clear that no other peak related to any other impurity has been detected in the EDAX, which confirms the synthetic process was carried out appropriately. Mass and atomic percentages of different elements is presented in table 1 (the rest are impurities).

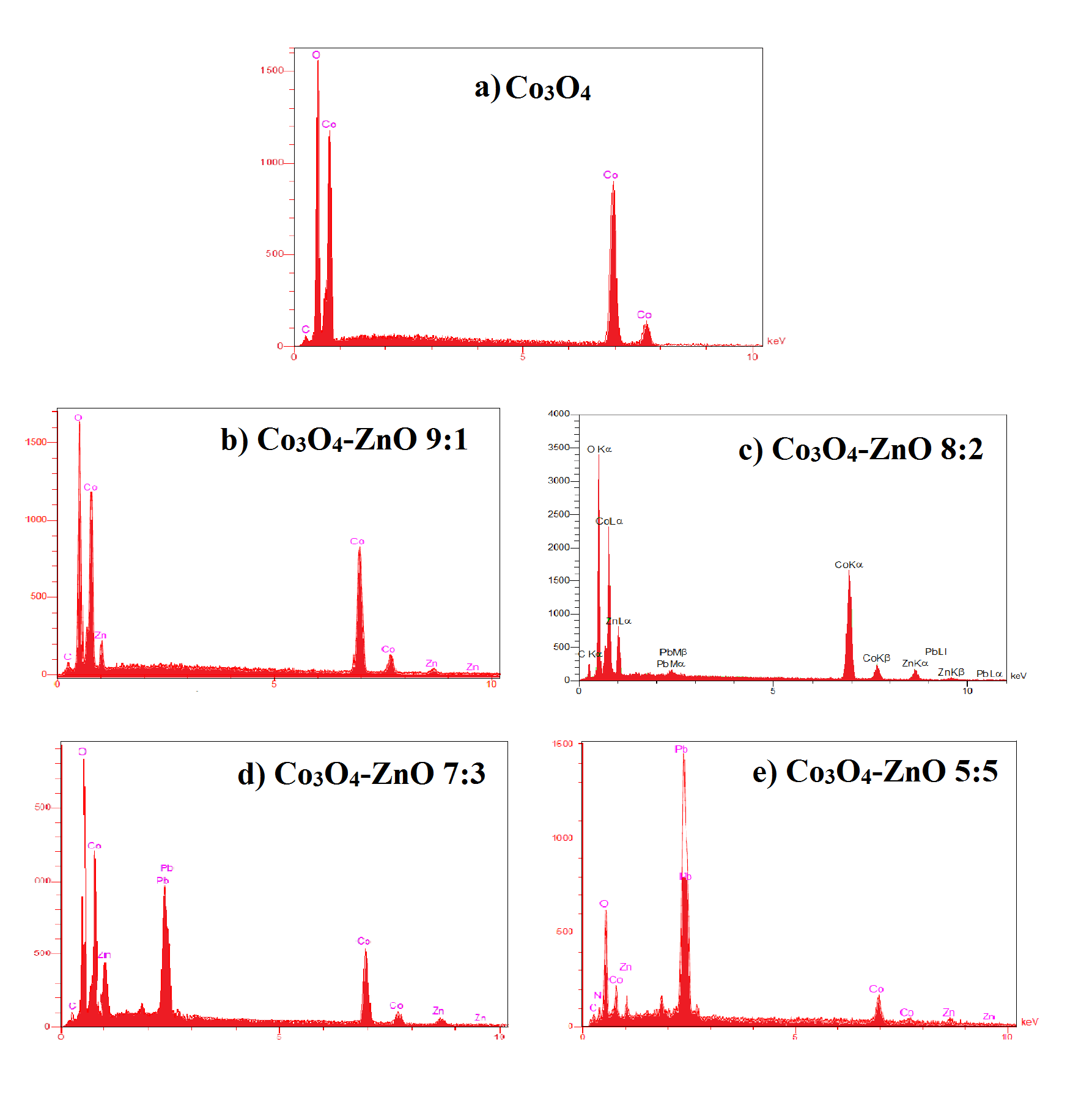

Fig. 2. EDAX spectra of a) pure Co₃O₄, b) Co₃O₄-ZnO 9:1, c) Co₃O₄-ZnO 8:2, d) Co₃O₄-ZnO 7:3, and e) Co₃O₄-ZnO 5:5

Table 1. EDAX results of the as-synthetized samples

The EDAX spectrum of the synthesized lead adsorbed samples were shown in Figure (3 (a-e)). EDAX spectrums show just the presence of cobalt, zinc, lead and oxygen elements indicating the purity of both the adsorbent and adsorbate. By comparing Figure 2 (a) and Figure 3 (a), it is observable that two spectrum are approximately the same, showing that Co₃O₄ sample did not adsorb any lead. This similarity are also observable in figure 2 (b) and 2(c), indicating the sample Co₃O₄-ZnO 9:1 did not adsorb lead on the surface. The peaks found in between 2.5 to 3 Kev in Figure 3 (c-e) indicate the presence of lead on the surface of Co₃O₄-ZnO 8:2, Co₃O₄-ZnO 7:3, and Co₃O₄-ZnO 5:5. EDAX strongly proved the adsorption of Pb on the surface of Co₃O₄-ZnO adsorbent. As can be seen in figure 3, by increasing the amount of ZnO on the structure of the samples, the adsorption of Pb on the surface increased too. Mass and atomic percentages of different elements is presented in table 2 (the rest are impurities).

Fig. 3. EDAX spectra of Pb²⁺ adsorbed a) pure Co₃O₄, b) Co₃O₄-ZnO 9:1, c) Co₃O₄-ZnO 8:2, d) Co₃O₄-ZnO 7:3, and e) Co₃O₄-ZnO 5:5.

Table 2 EDAX results of the as-synthetized samples after Pb²⁺ adsorption

Scanning electron microscopy (SEM)

SEM was used to study the surface morphology of the synthesized samples. Figure 4 shows the SEM pictures of Co₃O₄ and Co₃O₄-ZnO nanoparticles prepared by the gel combustion method. As shown in Figure 4, the synthesized particles are

relatively spherical. Besides, the synthesized nanoparticles are approximately homogeneous in nature. In the samples Co₃O₄ and Co₃O₄-ZnO 9:1 aggregation were occurred however, the other samples are distributed properly.

Fig. 4. SEM images of a) pure Co₃O₄, b) Co₃O₄-ZnO 9:1, c) Co₃O₄-ZnO 8:2, d) Co₃O₄-ZnO 7:3, and e) Co₃O₄-ZnO 5:5.

Figure 5 depicts the SEM image of lead adsorbed Co₃O₄ and Co₃O₄-ZnO nanoparticles. SEM images of Co₃O₄ and Co₃O₄-ZnO 9:1 before and after adsorption are not different because the pores between particles are not reachable by lead (comparing figure 4 and 5 (a and b). However, for the other Co₃O₄-ZnO samples, it is obvious that the distances between nanoparticles are covered after adsorption, which indicates the nucleating growth of lead on the surface of the adsorbent. These images help the confirmation of lead adsorption on the surface of as synthesized samples.

Fig. 5. SEM images of a) pure Co₃O₄, b) Co₃O₄-ZnO 9:1, c) Co₃O₄-ZnO 8:2, d) Co₃O₄-ZnO 7:3, and e) Co₃O₄-ZnO 5:5 after Pb²⁺ adsorption.

To study Pb²⁺ adsorption on the surface of Co₃O₄-ZnO samples, the concentrations of remained Pb²⁺ ions in supernatant were also measured by atomic absorption spectroscopy (AAS) and the sample absorbance was measured. The results of these experiments were shown in table 3. It seems that pure Co₃O₄ is not able to act as dependent to remove lead from solution. As can be seen, adsorption efficiency increase with increase in ZnO in the Co₃O₄-ZnO structures, for pure Co₃O₄ the adsorption efficiency was 0% and further increase in the ZnO the efficiency increase to 77.17% for Co₃O₄-ZnO 5:5. Consequently, Co₃O₄-ZnO 5:5 is the best adsorbent of Pb²⁺ compared to other adsorbents studied in this research.

Table 3 Adsorption efficiency of as synthesized samples for lead removal

Table 4 compares the characteristic data of the current method with other methods for adsorption of Pb in different samples [2,32–34]. As can be seen, the result is better or in some cases comparable to the other adsorbents. It can be inferred from this comparison that Co₃O₄–ZnO have a high lead adsorption capacity.

Table 4. Adsorption capacity of Co₃O₄–ZnO and other recently reported adsorbents.
