Introduction

Graphyne which is a newkind of artificial carbon allotropes is correlated to graphite/graphene. The special structures and attractive optical, electronic and mechanical properties have been explored. Graphyne was first depicted in 1987 [1], while, in spite of numerous attempts, graphyne has not yet been prepared [2-5].Theoretical researches excited attempts for synthesis of graphyne layers, crystals, and nanostructures. Graphyne compounds were synthesized by the polymerization of molecules having carbon cage fragments that are similar to the corresponding structure type of graphyne[6,7]. In this regard, theoretical calculations of the structures of graphyne layer fragments and single graphyne layers and their properties were reported [8-15]. The major aim of the present investigation is to clarify the Si-doping on the structure and properties of graphyne by the quantum mechanics method. The dipole moment, structural parameters, frontier orbital energies and aromaticity of these molecules were explored.

2. Computational Methods

All calculations were carried out using Gaussian 09 suite program [16]. The calculations of systems contain C, Si and H described by the standard 6-311G(d,p) basis set. Geometry optimization was performed utilized by  the hybrid meta exchange-correlation functional of Truhlar and Zhao (M06-2X) [17].A vibrational analysis was performed at each stationary point which confirmed its identity as an energy minimum.

After optimization of the studied molecules, single point calculations were carried out at the MP2/6-311G(d,p) [18-22] and wB97XD/6-311G(d,p) [23, 24] levels of theory.Chemical shift values are calculated using Gauge independent atomic orbital (GIAO) method at the same method and basis sets of optimization [25]. The topological analysis of the ELF was made using the Multiwfn 3.3.5 [26] at the M062X/6-311G(d,p) level of theory.

Results and discussion

Energetic aspects:

Figure 1 presents the structures and numbering schemes of atoms ingarphyne andisomers of Si-doped graphynes. The absolute energies and relative energies of these molecules are listed in Table 1. As shown in Table 1, the III-isomer is the most stable isomer of Si-doped graphynes. IV-isomer in the planar form has one imaginary frequency which exhibits a bending vibration of out-plane for Si atom.  Therefore, the stable form of this isomer deviates from planarity, changes to non-planar form and also changes the C_s symmetry of isomer to C₁.

Table 1. Energy (E, in a.u) and relative energy (DE, kcal/mol) of graphyne and Si-doped graphyne isomers at the determined levels of theory.

^a optimization at the M062X/6-311G(d,p) level of theory.

^b after optimization at the M062X/6-311G(d,p) level of theory, single point of optimized structure of the calculated at MP2/6-311G(d,p) level of theory

^b after optimization at the M062X/6-311G(d,p) level of theory, single point of optimized structure of the calculated at wb97xd/6-311G(d,p) level of theory

Moreover, the results of single point calculations at the MP2/6-311G(d,p) and wb97xd/6-311G(d,p) levels of theory of optimized studied molecules show that  the III-isomer is the most stable isomer of Si-doped graphynes.

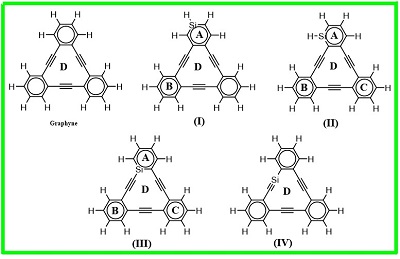

Fig.1. The structures of graphyne and Si-doped graphyne isomers in this study.

Polarizability

Polarizability which describes the response of a system in an applied electric field determines not only the strength of molecular interactions (such as the long range intermolecular induction, dispersion forces, etc.) and the cross sections of different scattering and collision processes, but also the nonlinear optical properties of the system [27].

The isotropic polarizability (a_iso) is calculated as the mean value as given in the following equation:

16αiso= <α>=(αxx+αyy+αzz)3">

and the polarizability anisotropy invariant (a_aniso) is:

16αaniso=(αXX- αYY )2+(αYY- αZZ )2+(αZZ- αXX )2212">

The isotropic and anisotropic polarizability values of studied molecules are calculated (Table 1). These values show the smallest isotropic and anisotropic polarizability values for III-isomer. As expected from the principles of minimum energy (MEP), and minimum polarizability (MMP), that is, while a conformer changes from the most stable to other less stable species in most cases, the energy increases, and the polarizability increases[28-30].

IPs and EAs

The ionization potential (IP) and electron affinity (EA) are the well-defined properties that can be calculated by DFT to estimate electrons into the compounds. These values aim to get an in-detail rationalization of the relationship between the structure and the electronic behavior of the molecule, in particular the response of the molecule to the formation of a hole, or to the addition of an electron, additional information is derived. Table 2 contains the calculated IPs, EAs, both vertical and adiabatic, and the extraction potentials (HEP and EEP for the hole and electron, respectively) that refer to the geometry of the ions [31, 32].

The results, presented in Table 2, show that the IP_a and IP_v values in Si-doped gaphynes are less than graphyne. The most stable isomer of Si-doped gaphynes (III-isomer) has the lowest IPa and IP_v values  On the other hand, the EA_a and EA_v values in Si-doped gaphynes are more than graphyne. The most stable isomer of Si-doped gaphynes (III-isomer) has the most EA_a and EA_v values.

Table 2. Dipole moment (m, Debye)), isotropic polarizability (aiso, Bohr3), anisotropic polarizability (aaniso, Bohr3), frontier orbital energies (a.u) and HOMO-LUMO gap (eV) of graphyne and Si-doped graphyne isomers in the M062X/6-311G(d,p) level of theory.

The mobility of charges has been established to be related mainly to the internal reorganization energy λ_{hole/electron}. The data in Table 2 show that the λ_hole values for all molecules are all smaller than their corresponding λ_electron values indicating that the electron transfer rate is lower than the hole transfer rate. According to the values gathered in Table 2, these molecules can be applied as hole transport layer (HTL)/an electron block layer.

Dipole moments

The dipole moments of ingarphyne andisomers of Si-doped graphynes are gathered in Table 1. As can be seen, the most stable isomer of Si-doped graphynes (III-isomer) has the largest dipole moment than that of other isomers.

Molecular orbital analysis

Table 1 summarizes the values of frontier orbital energies and HOMO-LUMO gaps. Apparently, HOMO is more stable in graphyne than Si-doped graphynes. In contrast, LUMO is more stable in Si-doped graphynes than graphyne.

The hardness (h), chemical potential (m) and electrophilicity (w) of the molecules are evaluated by the following formulas [33-36]:

16η=IPa-EAa2">

16μ=EAa+IPa2">

16ω=μ22η">

Table 3 shows the largest hardness and smallest electrophilicity for II-isomer.

Table 3. Ionization potential (IP, in eV), electron affinity (EA, in eV), hole Extraction potential (HEP, eV), electron extraction potential (EEP, eV), reorganization energies (l_hole,l_electron, eV) of graphyne and Si-doped graphyne isomers in the M062X/6-311G(d,p) level of theory.

The HOMO-LLUMO gap is regarded as a major determinant of the electrical conductivity of a system. It is defined as the energy difference between the valance level (HOMO) and the conduction level (LUMO) in insulators and semiconductors and can be calculated using the following equation [37]:

16σ∝exp(-Eg2kbT)">

whereE_g, s, k_b and T are HOMO-LUMO gap, electrical conductivity, Boltzmann’s constant and T is the temperature, respectively. The HOMO-LUMO gap decreases from 2.69 eV in graphyne to 2.52-2.22 eV after Si-doping. According to the above mentioned equation, at a given temperature, the smaller HOMO-LUMO gap values are associated with more electrical conductivity.

Figure 2 presents the plots of frontier orbitals of the studied molecules. It can be seen that these orbitals are p-type, and the overlap between carbon atoms of -CºC- is bonding and anti-bonding for HOMO and LUMO, respectively.

Fig. 2. The plots of frontier orbitals in graphyne and Si-doped graphyne isomers.

Chemical shift nucleus independent values (NICS)

Figure 1 illustrates that graphyne involves aromatic 6-membered rings and the weak anti-aromatic 12-membered rings[38, 39]consisting of alternating triple bonds and conjugated double bonds, the latter being shared by the 6-membered rings. As benzene is regarded to be the smallest unit of graphite, dehydrobenzo[12]annulene (1,DBA)[40] can be considered as the smallest unit of graphyne. It is, therefore, of interest to illustrate changes of aromaticity in Si-doped graphynes.

In an aromatic ring, a diatropic ring current rises which is the result of magnetic shielding at the ring center, however in an anti-aromatic ring, a paratropic ring current outcomes in deshielding at the ring center[41, 42]. Chemical shift nucleus independent values (NICS) values give a suitable and valuable quantity of the degree of aromaticity/anti-aromaticity of one ring in a molecule[43].

Chemical shift nucleus independent values (NICS) values are calculated for the study of aromaticity in the investigated molecules. These values are gathered in Table 4.  The calculated NICS values show the negative values for A, B, C cycles.These values are compatible with aromaticity of these rings. The most negative values in 1.5 Å which are above the rings reveal p-aromaticity in the rings. But, the positive values are observed for D cycle. Therefore, there is an anti-aromaticity in the D cycle.

Table 4. Hardness (h, eV), chemical potential (m, eV) and electrophilicity (w, eV) values of of graphyne and Si-doped graphyne isomers in the M062X/6-311G(d,p) level of theory.

Electron localization function (ELF)

An alternative scheme based on properties of the electron density, as the electron localization function (ELF) [44], has been introduced to understand aromaticity [45,46]. The electron delocalization can be obtained through the bifurcation analysis of ELF. The bifurcation points have been interpreted as a measure of the interaction among the different basins and, chemically, as a measure of electron delocalization [45].

Table 5. NICS (in ppm) and ELF bifurcation values of rings for graphyne and Si-doped graphyne isomers in the M062X/6-311G(d,p) level of theory.
